AT A GLANCE
With many great features, this printer is the key to success for your on-site photo business.
- Compact Size
170mm high, foot print 0.1m2 - High Speed
8.4 sec (Standard 4”× 6”) - High Durability
200,000 prints (Standard 4”× 6”) - Sticker Printing
Compact Size
This compactly 170 mm-high printer can be installed in an area equivalent 0.1 m2 with minimal interference.+
Easy Operation
Easily replace paper and ink ribbon by pulling out printer front panel.
Dust-Free Design
A separator creates different passages of air for the thermal head and power supply. The high air pressure in the printer prevents dust from entering.
Energy Saving Design
Consuming only 0.5W or less in sleep mode, the ASK-400 saves energy and lowers your costs.
Printing method Dye-sublimation thermal transfer (D2T2)
Foot print 0.10 m2

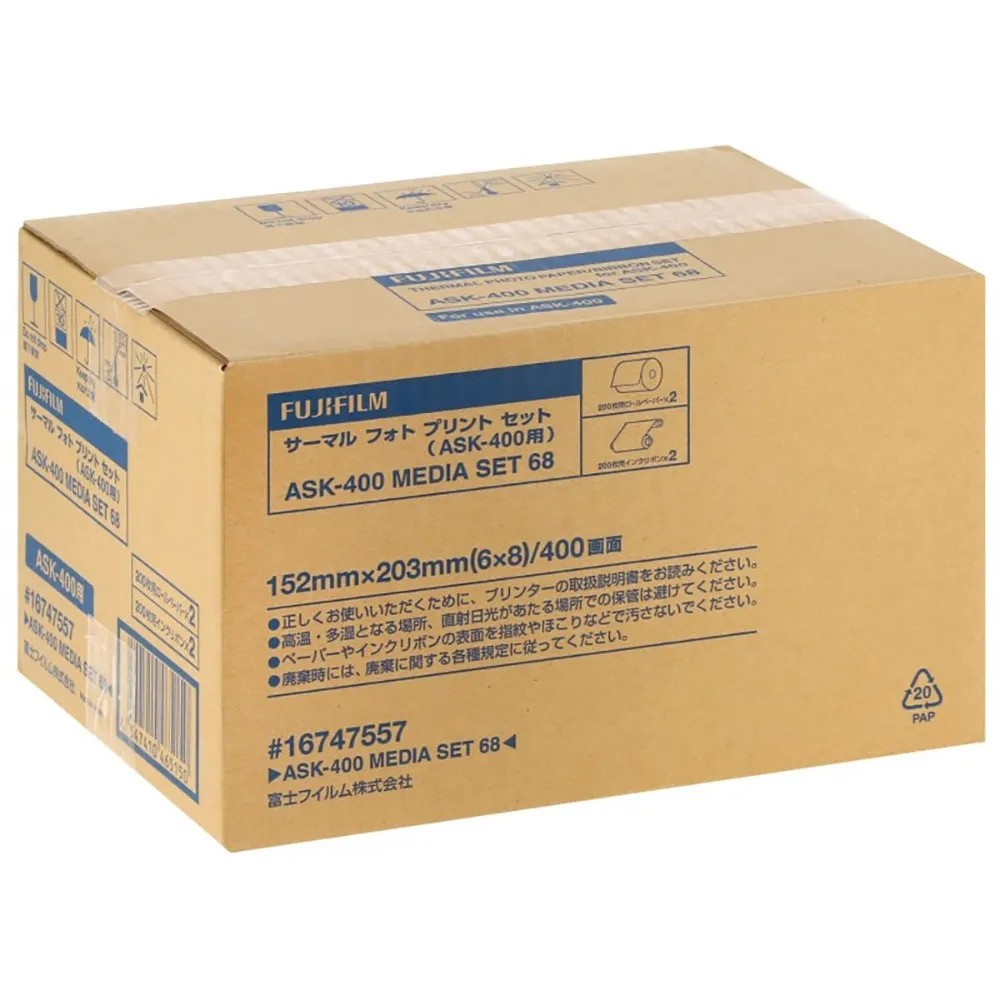

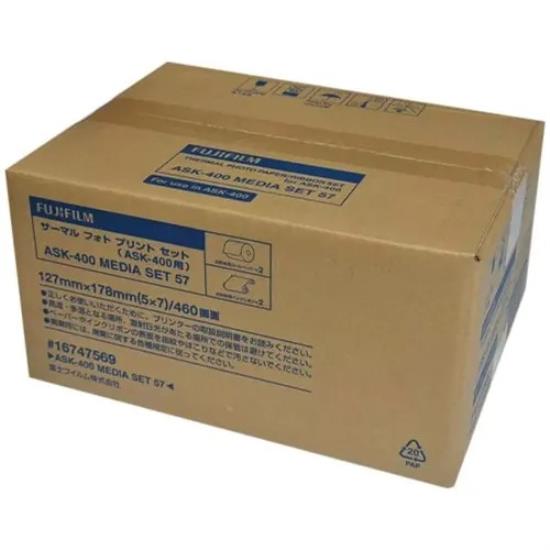

Line-up of consumables Standard Print : 5”×7”, 6”×8”
Sticker Print : 6”×8”
Print size Standard Print : 3.5”×5”,5”×5”, 5”×7”, 4”×6”, 6”×6”, 6”×8”
Sticker Print : 4”×6”, 6”×8”
Surface finish Glossy type, Matte type
Ribbon finish Yellow, Magenta, Cyan and Overcoat
Printing resolution 300×300 dpi (Standard mode),
300×600 dpi (High Quality mode)
Operation for paper exchange Semi-Auto Loading
Printer life 200,000 prints (Standard 4”×6”)
Number of prints Standard 3.5”×5”: 460 sheets, 5”×7”: 230 sheets in 1 roll
Standard 4”×6”: 400 sheets, 6”×8”: 200 sheets in 1 roll
Sticker 4”×6”: 400 sheets, 6”×8”: 200 sheets in 1 roll
Print speed Standard 3.5”×5” : approx. 7.6 sec (Glossy type, Standard mode)
Standard 4”×6” : approx. 8.4 sec (Glossy type, Standard mode)
Sticker 4”×6”: approx. 13.0 sec (Glossy type, High Quality mode)

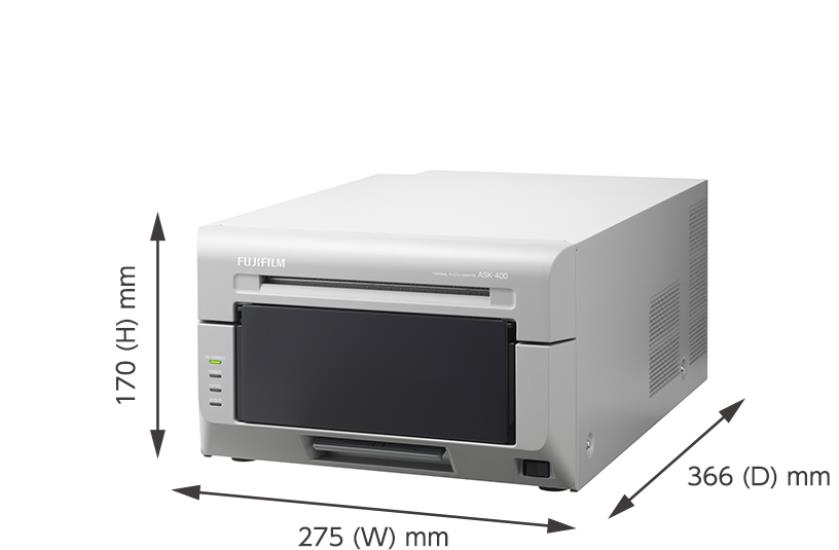

Dimensions (W×D×H) 10.8”×14.4”×6.7” (275 mm×366 mm×170 mm)
Weight approx. 12 kg (26.4 lb)
Interface USB 2.0 Type B connector
Power supply 100V-240V 50 / 60 Hz
Driver software Windows 7 / Windows 10 (32 bit / 64 bit)
