AT A GLANCE
- For Air 3/3S, Mini 4 Pro, Flip & Neo
- Works with DJI's O4 Transmission System
- Built-In 5.5" 1080p Resolution Display
- 10-Point Multi-Touch
- 2T4R Antennas
- Up to 3 Hours of Battery Life

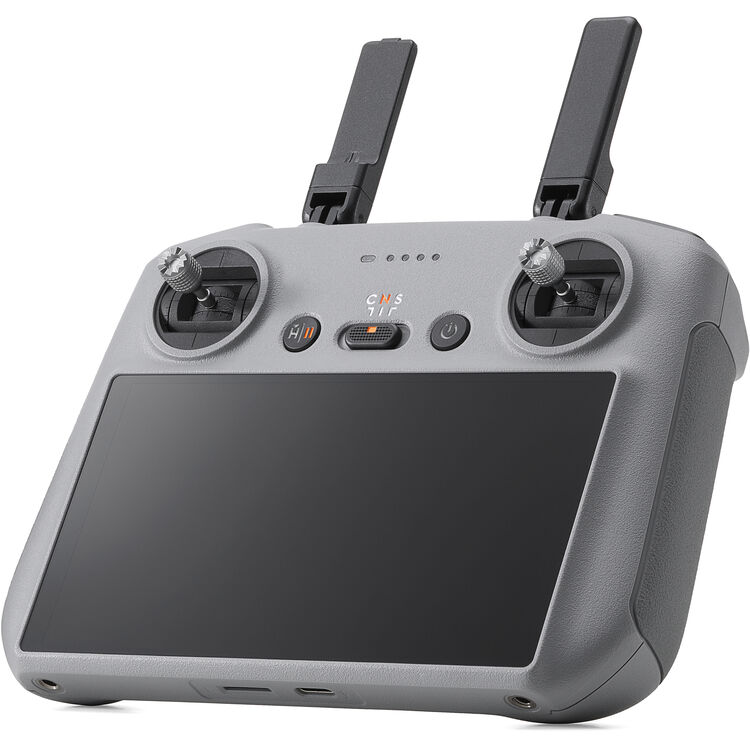

Supporting DJI's new O4 long-range transmission system with 2T4R antennas, the RC 2 Remote Controller from DJI is capable of receiving a 1080p resolution live feed from compatible drones, such as the Air 3S, Air 3, Mini 4 Pro, Flip, and Neo. The footage is conveniently displayed on the RC 2's built-in 5.5" 10-point multi-touch 1080p display.
Compatibility DJI Air 3 / Air 3S / Mini 4 Pro / Flip / Neo
Display Panel Type LCD
Size 5.5"
Native Resolution 1920 x 1080
Touchscreen Yes
Maximum Brightness 700 nits / cd/m2
Frame Rate 60 fps
Media/Memory Card Slot Single Slot: microSD/microSDHC [256 GB Maximum]
Internal Storage 32 GB
Wireless 2.4 GHz Radio/RF / 5.1 GHz Radio/RF / 5.8 GHz Radio/RF / Wi-Fi 6 (802.11ax) / Bluetooth 5.2
Mobile App Compatible No
Global Positioning (GPS, GLONASS, etc.) BeiDou, Galileo, GPS
Transmission
- Operating Frequency: 2.4000 to 2.4835 GHz, 5.170 to 5.250 GHz, and 5.725 to 5.850 GHz
- Video Transmitter Power (EIRP) (2.4 GHz): <33 dBm (FCC) and <20 dBm (CE/SRRC/MIC)
- Video Transmitter Power (EIRP) (5.1 GHz): <23 dBm (CE)
- Video Transmitter Power (EIRP) (5.8 GHz): <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
- Wi-Fi Transmitter Power (EIRP) (2.4 GHz): <26 dBm (FCC) and <20 dBm (CE/SRRC/MIC)
- Wi-Fi Transmitter Power (EIRP) (5.1 GHz): <23 dBm (CE/FCC/SRRC/MIC)
- Wi-Fi Transmitter Power (EIRP) (5.8 GHz): <23 dBm (FCC/SRRC) and <14 dBm (CE)
- Bluetooth Transmitter Power (EIRP): <10 dBm
Battery Chemistry Lithium-Ion
Battery Capacity 3100 mAh / 22.32 Wh
Recharge Time 1.5 Hours
Maximum Battery Life 3 Hours
Power Charging Type: Supports up to 9 V/3 A Fast Charge
Charging Temperature: 41 to 104°F / 5 to 40°C
Color Gray
Operating Conditions 14 to 104°F / -10 to 40°C
Storage Conditions -22 to 140°F / -30 to 60°C
Dimensions 6.6 x 5.2 x 1.8" / 168.4 x 132.5 x 46.2 mm (Without Control Sticks)
6.6 x 5.2 x 2.5" / 168.4 x 132.5 x 62.7 mm (With Control Sticks)
Weight 14.8 oz / 420 g
